Tire Size Designation |
Pattern |
Star Rating |
Ind Code |
Rim Width & Flange | Design Dimensions |
Tread Depth |
Performance Capability (TKPH) |
Type | |||||||||
Overall Width | Overall Diameter | ||||||||||||||||
in | mm | in | mm | 32nds | mm | T1 | T2A | T2B | T2C | T3 | TT | TL | |||||
27.00R49 | TB526S | ** | E-4 | 19.50/4.0 | 29.00 | 737 | 106.36 | 2702 | 93.0 | 74.0 | 315.0 | 345 | 435.0 | 480.0 | 560 | TL | |

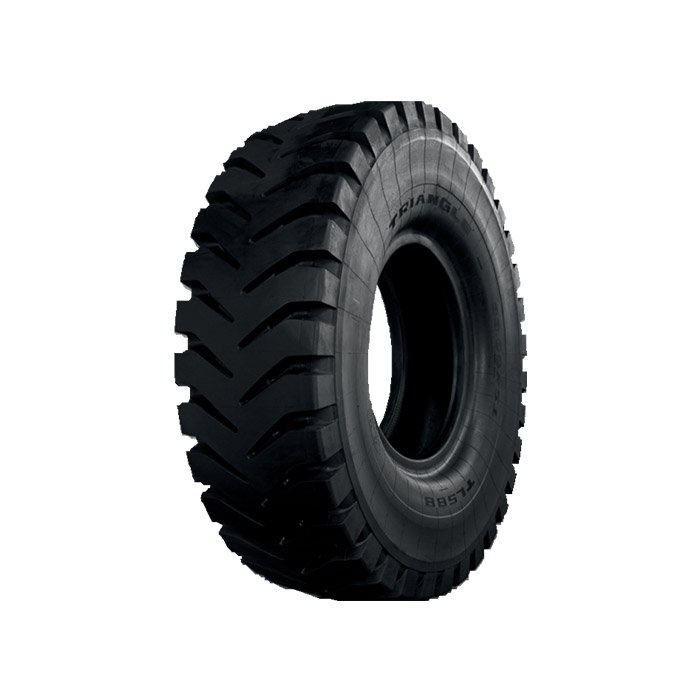

33.00R51 | TL588 | ** | E-4 | 24.00/5.0 | 35.20 | 894 | 120.50 | 3061 | 105.0 | 83.0 | 350.0 | 415 | 520.0 | 575.0 | 695 | TL | |
36.00R51 | TB599 | ** | E-4 | 26.00/5.0 | 38.90 | 988 | 127.28 | 3233 | 126.0 | 100.0 | 485.0 | 655 | 820.0 | 905.0 | 975 | TL | |
37.00R57 | TB599 | ** | E-4 | 27.00/6.0 | 40.00 | 1016 | 135.35 | 3438 | 126.0 | 100.0 | 550.0 | 685 | 860.0 | 950.0 | 1075 | TL | |
40.00R57 | TB599 | ** | E-4 | 29.00/6.0 | 43.20 | 1097 | 141.48 | 3594 | 126.0 | 100.0 | 600.0 | 840 | 1050.0 | 1155.0 | 1190 | TL | |
46/90R57 | TB599 | ** | E-4 | 29.00/6.0 | 46.00 | 1168 | 141.48 | 3594 | 126.0 | 100.0 | 625.0 | 875 | 1095.0 | 1204.5 | 1300 | TL | |
