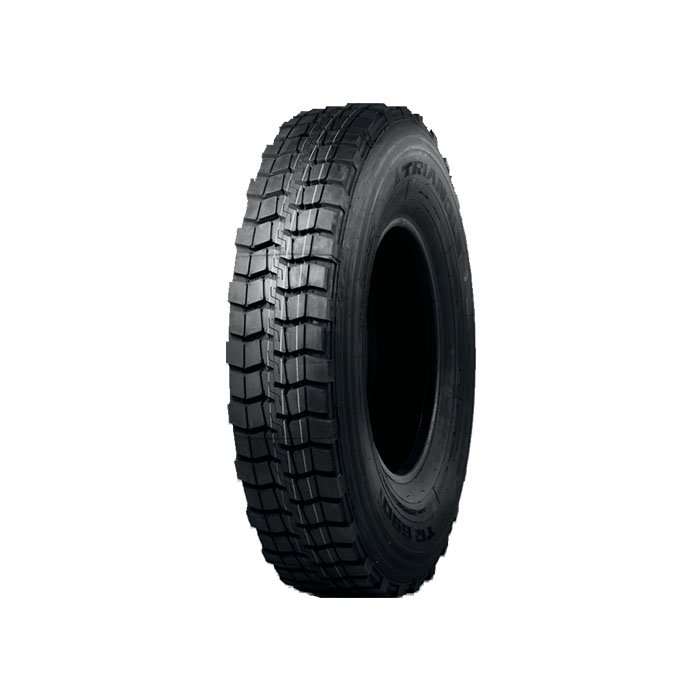

• Shoulder block pattern and center longitudinal pattern provides good driving and
braking performance.
• Open wide groove design, good self-cleanness and heat elimination.
• Big pattern block provides good traction on mix service conditions.
• Designed for the drive axles of dump trucks, van and tractors on rural, building site and mine roads.
Size |
PR | Loading Index |
Speed Rating |
Tread Depth |
Rim Width |
Alternative Rim | New Tire Inflated Dimensions (mm) | Max Load (Kg) |
Pressure (KPa) |
Tube |
Static Radius Under Load |
Min. Dual Tire Space | |||
12.00R24 | 18 | 158 | 155 | K | 18.5 | 8.50 | 8.50V, 9.00 | 315 | 1226 | 4250 | 3875 | 830 | TT | 572 | 372 |
12.00R24 | 20 | 160 | 157 | J | 18.5 | 8.50 | 8.50V, 9.00 | 315 | 1226 | 4500 | 4125 | 900 | TT | 572 | 372 |
12.00R24 | 20 | 160 | 157 | K | 18.5 | 8.50 | 8.50V, 9.00 | 315 | 1226 | 4500 | 4125 | 900 | TT | 572 | 372 |
